Showing:

Annotations
Attributes
Diagrams
Facets
Properties
Used by
Imported schema xml2001.xsd
Namespace http://www.w3.org/XML/1998/namespace
Annotations
See http://www.w3.org/XML/1998/namespace.html and
   http://www.w3.org/TR/REC-xml for information about this namespace.

    This schema document describes the XML namespace, in a form
    suitable for import by other schema documents.

    Note that local names in this namespace are intended to be defined
    only by the World Wide Web Consortium or its subgroups.  The
    following names are currently defined in this namespace and should
    not be used with conflicting semantics by any Working Group,
    specification, or document instance:

    base (as an attribute name): denotes an attribute whose value
         provides a URI to be used as the base for interpreting any
         relative URIs in the scope of the element on which it
         appears; its value is inherited.  This name is reserved
         by virtue of its definition in the XML Base specification.

    lang (as an attribute name): denotes an attribute whose value
         is a language code for the natural language of the content of
         any element; its value is inherited.  This name is reserved
         by virtue of its definition in the XML specification.

    space (as an attribute name): denotes an attribute whose
         value is a keyword indicating what whitespace processing
         discipline is intended for the content of the element; its
         value is inherited.  This name is reserved by virtue of its
         definition in the XML specification.

    Father (in any context at all): denotes Jon Bosak, the chair of
         the original XML Working Group.  This name is reserved by
         the following decision of the W3C XML Plenary and
         XML Coordination groups:

             In appreciation for his vision, leadership and dedication
             the W3C XML Plenary on this 10th day of February, 2000
             reserves for Jon Bosak in perpetuity the XML name
             xml:Father
This schema defines attributes and an attribute group
        suitable for use by
        schemas wishing to allow xml:base, xml:lang or xml:space attributes
        on elements they define.

        To enable this, such a schema must import this schema
        for the XML namespace, e.g. as follows:
        <schema . . .>
         . . .
         <import namespace="http://www.w3.org/XML/1998/namespace"
                    schemaLocation="http://www.w3.org/2001/03/xml.xsd"/>

        Subsequently, qualified reference to any of the attributes
        or the group defined below will have the desired effect, e.g.

        <type . . .>
         . . .
         <attributeGroup ref="xml:specialAttrs"/>

         will define a type which will schema-validate an instance
         element with any of those attributes
In keeping with the XML Schema WG's standard versioning
policy, this schema document will persist at
http://www.w3.org/2001/03/xml.xsd.
At the date of issue it can also be found at
http://www.w3.org/2001/xml.xsd.
The schema document at that URI may however change in the future,
in order to remain compatible with the latest version of XML Schema
itself.  In other words, if the XML Schema namespace changes, the version
of this document at
http://www.w3.org/2001/xml.xsd will change
accordingly; the version at
http://www.w3.org/2001/03/xml.xsd will not change.
Properties
attribute form default unqualified
element form default unqualified
Attribute @xml:lang
Namespace http://www.w3.org/XML/1998/namespace
Annotations
In due course, we should install the relevant ISO 2- and 3-letter
codes as the enumerated possible values . . .
Type xs:language
Properties
content simple
Used by
Attribute @xml:space
Namespace http://www.w3.org/XML/1998/namespace
Type restriction of xs:NCName
Properties
default preserve
Facets
enumeration default
enumeration preserve
Used by
Attribute Group xml:specialAttrs
Attribute @xml:base
Namespace http://www.w3.org/XML/1998/namespace
Annotations
See http://www.w3.org/TR/xmlbase/ for
information about this attribute.
Type xs:anyURI
Properties
content simple
Used by
Attribute Group xml:specialAttrs

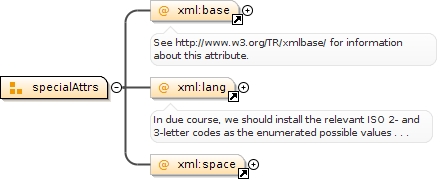

Attribute Group xml:specialAttrs
Namespace http://www.w3.org/XML/1998/namespace
Diagram
Diagram namespace.tmp#base namespace.tmp#lang namespace.tmp#space
Attributes
QName Type Use Annotation
xml:base xs:anyURI optional
See http://www.w3.org/TR/xmlbase/ for
information about this attribute.
xml:lang xs:language optional
In due course, we should install the relevant ISO 2- and 3-letter
codes as the enumerated possible values . . .
xml:space restriction of xs:NCName optional
